Multi Power

Мощност 45 - 294 kVA
15–240 kW + резервиране 25–400 kW + резервиране 42–1008 kW + резервиране Riello UPS MULTI POWER (MPW и MPX) е трифазен източник на непрекъсваемо електрозахранване с модулна архитектура, тип ON LINE с двойна конверсия, с възможност за резервиране. То осигурява номинална мощност от 15 до 1176 kW и е произведено с използване на специално проектирани компоненти и безтрансформаторни технологии, които осигуряват изключителна ефективност до 96,6% и висока плътност на мощността при компактни размери. Модулността намалява риска от ненужно преоразмеряване при инсталирането, като същевременно предлага мащабируемост по принципа „плащаш, докато растеш“, когато дойде време за разширение, което оптимизира първоначалната инвестиция и общите разходи за собственост (TCO). Той е проектиран да защитава:
  • всяка критична компютърна и ИТ среда с висока плътност
  • центрове за данни
  • критични товари
ИЗПРАТИ ЗАПИТВАНЕ

Акценти

  • Utmost availability
  • Ultimate scalability
  • Unmatched power density
  • Efficiency > 96.6%
  • Multiple controls
  • Highly flexible
  • Advanced communication

An award-winning modular UPS, the compact yet power-packed Multi Power (MPW and MPX) sets new standards in reliability, efficiency, and scalability.

To ensure the highest levels of power availability and optimize the overall performance of the finished product, in the development of the Multi Power modules have been used cutting edge power components, innovative control technologies and specific design of certain components. Rather than using standard components readily available in the marketplace, the Multi Power hosts one single optimised and reliable power assembly.

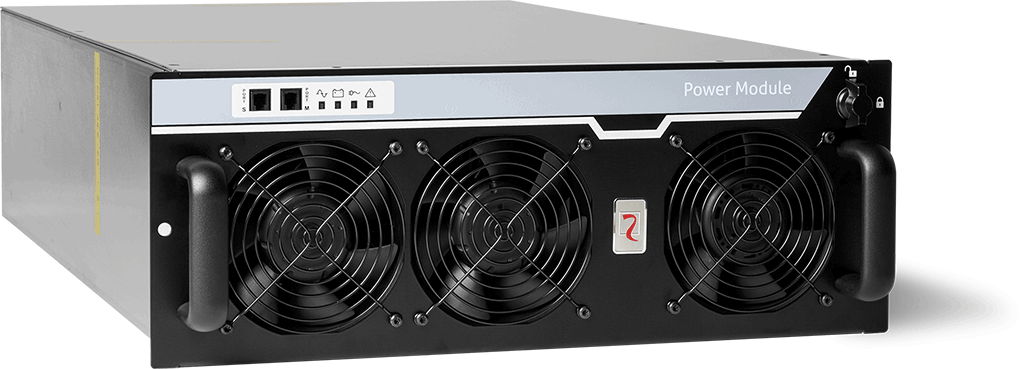

Multi Power provides a comprehensive, easy to integrate power protection solution: the end user can easily increase power, redundancy level and battery autonomy by simply adding additional UPS Power Modules (PM) and Battery Units (BU).

Three different cabinets are available to build the system:

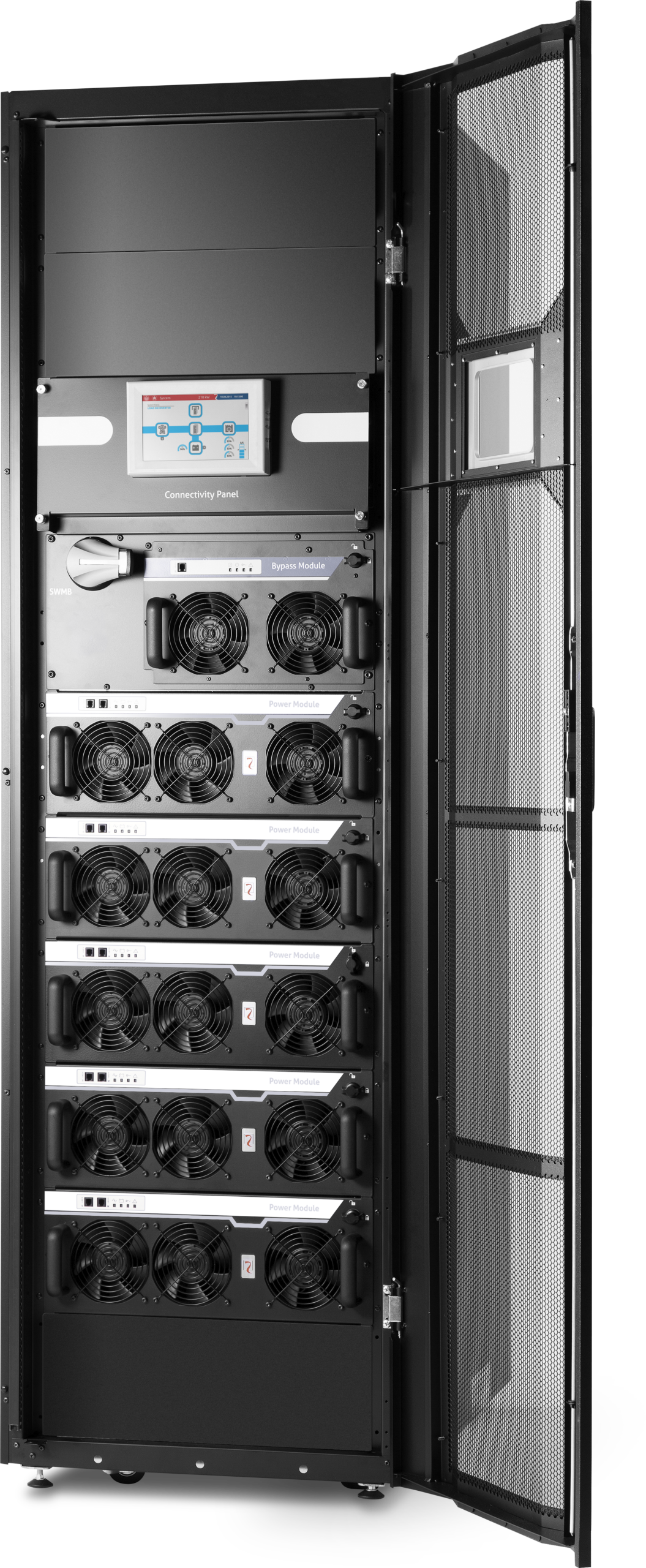

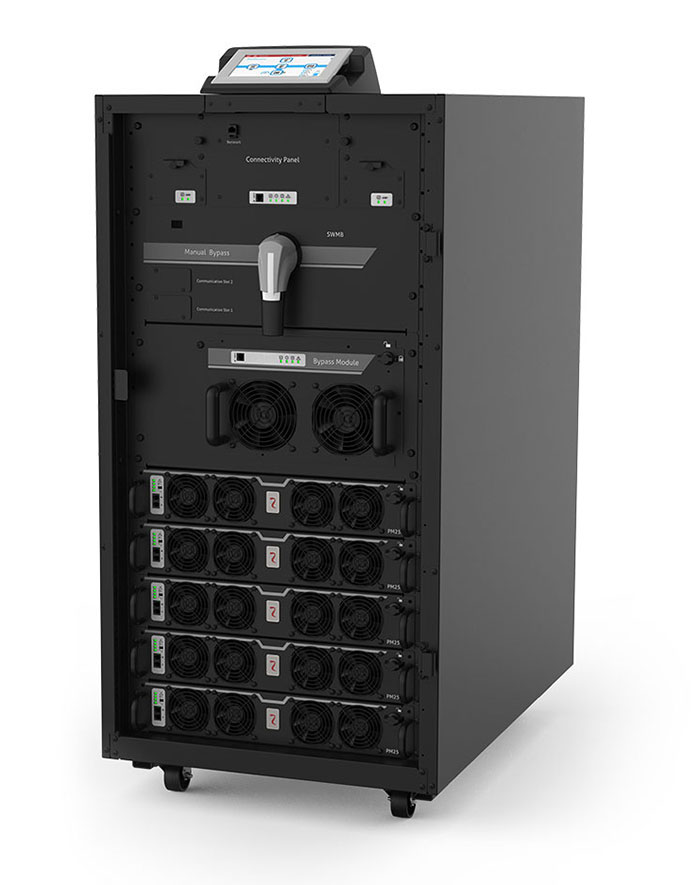

- Power Cabinets (MPW and MPX)

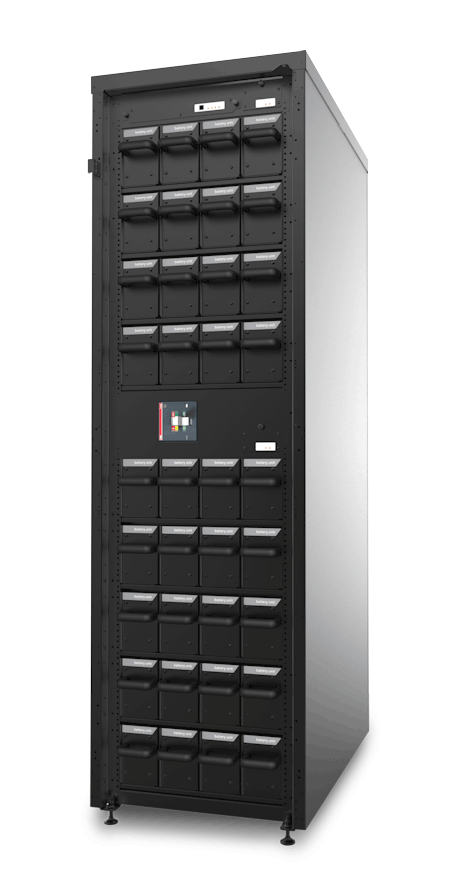

- Battery Cabinet (BTC).

The available UPS power and redundancy level can expand vertically from:

  • 15 to 75 kW
  • 25 to 125 kW
  • 42 to 294 kW

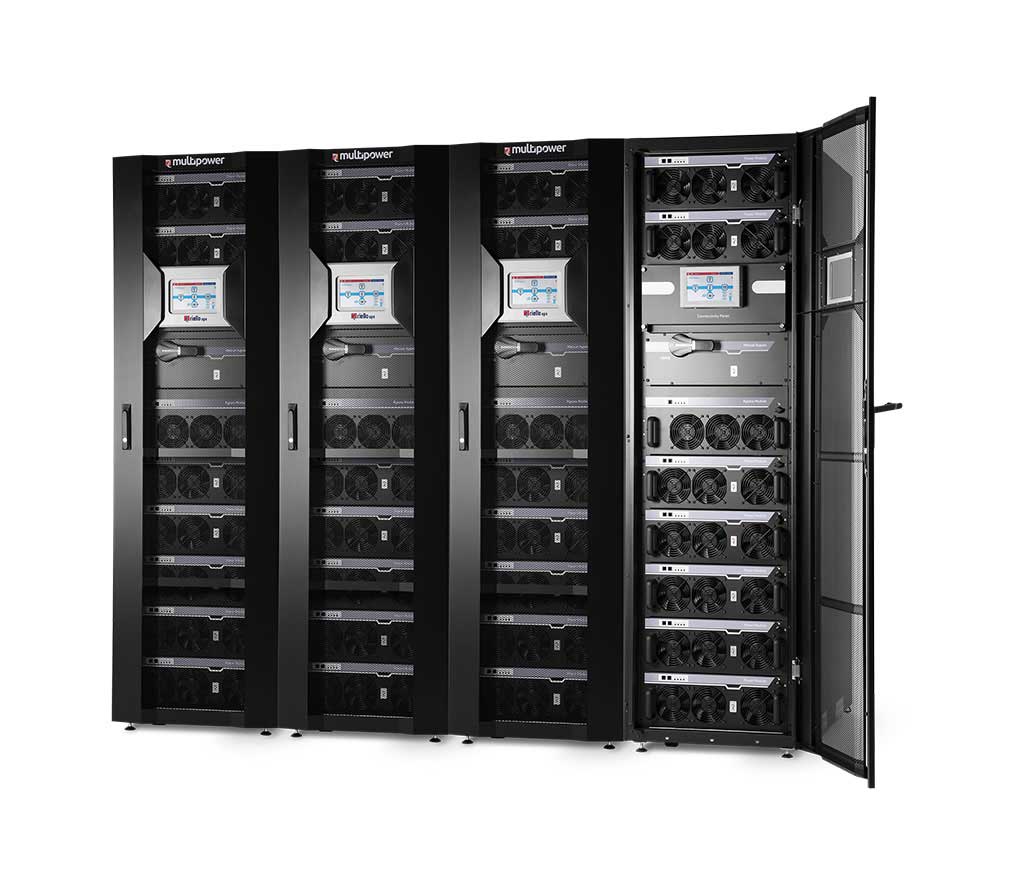

Up to four complete Power Cabinets can be connected in parallel, increasing the capacity including redundancy.

The entire Multi Power solution was developed with particular care to ensure operational reliability and prevent any possible failures.

The Power Modules are controlled by three microprocessor - each having different and specific duties. Likewise, Power Cabinet features two separate microprocessors: one to regulate the overall UPS operations and a separate one to manage communication with the user. All major components are continually temperature monitored within each of the Power Modules. The Battery Unit also contains dedicated internal protection and a sophisticated control system to monitor the status of each module.

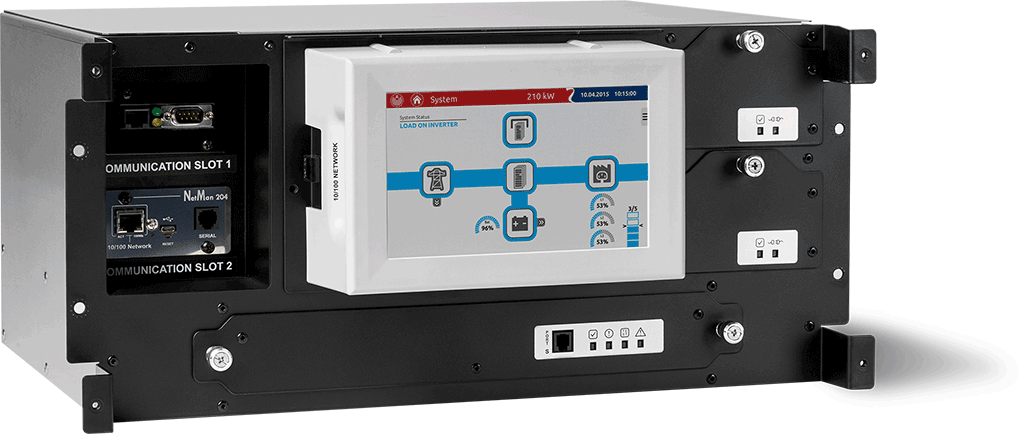

A sizeable 7 inch LCD touchscreen control panel enables user-friendly communication, while the UPS is fully-compatible with Riello UPS’s range of network communications software, which allows for monitoring and shutdown of all connected devices.
